Integrated handheld spectroscopy platform
A modular platform combining the RS-EDGE001 controller and RS-AD001 acquisition board, with a capacitive touch display.
Made-to-order · confirm lead time with ZEROM
Open original store ↗ Ask a questionPurchasing is handled by ZEROM’s original store. Confirm price, availability, and specifications before ordering.
The system controller manages spectroscopy algorithms and user interaction. Integrated WiFi supports data logging and remote cloud synchronization. A compact layout combines power management and high-speed interfaces for handheld integration.
The capacitive touch LCD presents energy spectra, peak identification, and FWHM analysis for on-site spectrum verification.
Synchronized two-channel ADC sampling, dedicated Broadcom AFBR-S4E001 sockets, and a low-noise analog front-end connect to the controller through stacking headers.
Dedicated probing points give access to pre-amplifier output. Researchers can use an oscilloscope to check raw pulse integrity and tune signals without disassembling the device.
1. System Overview
The RadScope Series is a modular hardware solution designed for high-precision radiation monitoring and isotope identification. By integrating the powerful RS-EDGE001 controller with the high-sensitivity RS-AD001 ADC board, it provides a laboratory-grade analysis environment in a portable handheld form factor.
2. RS-EDGE001 (Main Control Board)
"The Intelligence Center for Seamless Data Processing"
The RS-EDGE001 serves as the brain of the system, managing complex algorithms and user interactions.
• High-Performance Processing: Optimized for real-time spectroscopic data analysis.
• Wireless Connectivity: Integrated WiFi for instant data logging and remote cloud synchronization.
• User-Centric Interface: Fully supports Capacitive Touch LCD for intuitive on-site operations.
• Ultra-Compact Design: Tailored for handheld devices with a focus on power efficiency.

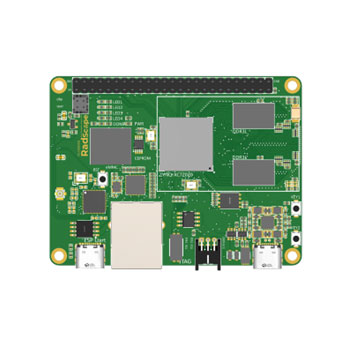

RS-EDGE001 Front View

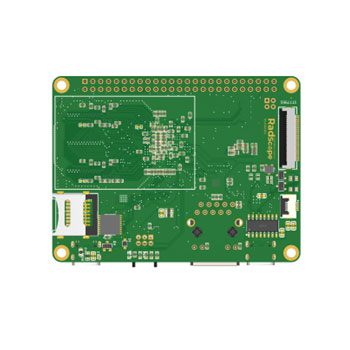

RS-EDGE001 Back View

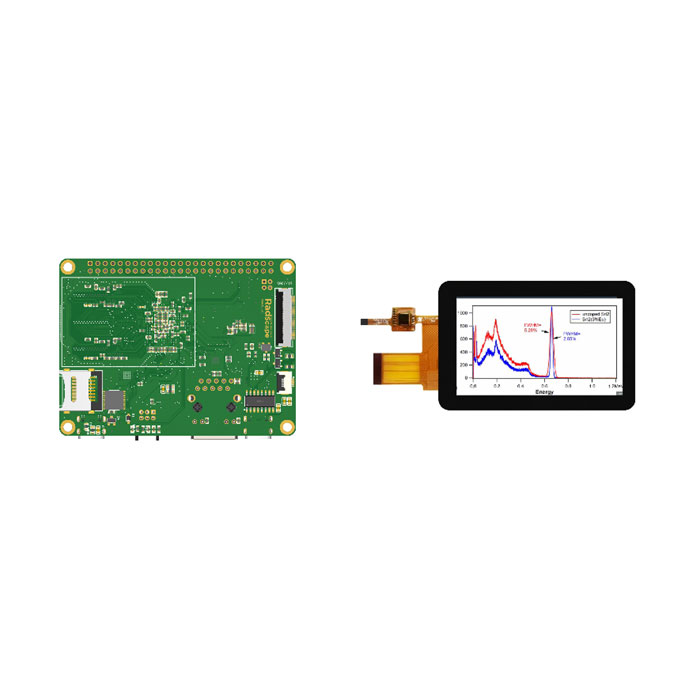

High-Density Integration for Field Mobility The rear layout of the RS-EDGE001 showcases a compact, high-density design optimized for handheld integration. It features an efficient power management circuit and high-speed data interface connectors to ensure stable performance under various field conditions.
Intuitive UI with Real-time Spectrum Visualization The integrated capacitive touch LCD provides a crisp, responsive interface for on-site operators. It displays high-resolution energy spectrums (MCA data) with clear peak identification and FWHM (Full Width at Half Maximum) analysis, allowing for immediate isotope verification.
3. RS-AD001 (High-Performance ADC Board)
"Precision Signal Acquisition for Reliable Detection"
The RS-AD001 is a specialized analog-to-digital conversion module that captures delicate radiation signals with extreme clarity.
• Dual-Channel ADC: Supports synchronized 2-channel sampling for comprehensive signal tracking.
• SiPM Optimized Interface: Features dedicated sockets for Broadcom AFBR-S4E001 SiPM modules (Cathode/Anode).
• Low-Noise Analog Front-End: Engineered to minimize signal interference, ensuring superior energy resolution.
• Plug-and-Play Stacking: Seamlessly connects to the RS-EDGE001 via high-density headers.

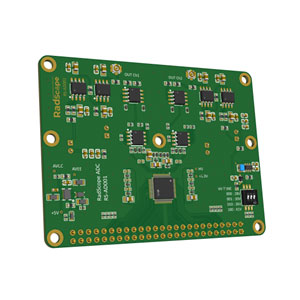

RS-AD001 Front View

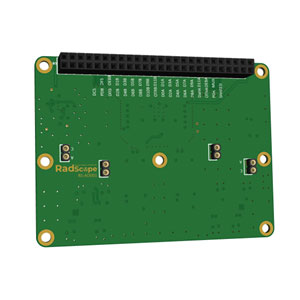

RS-AD001 Back View

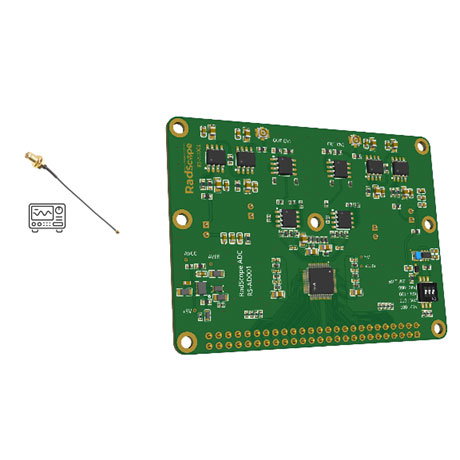

Real-time Signal Verification Port
• Integrated Probing Points: Features dedicated test ports to monitor pre-amplifier output signals directly.
• On-site Debugging: Allows developers and researchers to verify signal integrity using an oscilloscope without disassembling the device.
• High-Fidelity Monitoring: Ensures that the raw pulse signal from the SiPM is being processed correctly before digital conversion.
Direct Oscilloscope Interface: Monitoring the pre-amplifier output for precise signal tuning.
"Transparency in Signal Processing: The RS-AD001 provides direct access to pre-amp signals, enabling perfect calibration and real-time diagnostic capabilities in any environment."
4. Key Specifications
| System | RS-EDGE001 controller + RS-AD001 ADC board |
|---|---|
| Acquisition | Synchronized dual-channel ADC sampling |
| Sensor interface | Broadcom AFBR-S4E001 SiPM sockets (cathode / anode) |
| Display | Capacitive touch LCD; energy spectrum, peak identification, and FWHM analysis |
| Connectivity | WiFi, UART, and GPIO expansion |
| Analysis | Real-time peak detection and isotope library matching |
| Diagnostic access | Pre-amplifier output probing points for oscilloscope verification |
