Designed around SiPM sensing
Direct connectivity for Broadcom AFBR-S4E001 provides sensor power and bias-voltage support.
RadScope series / 02

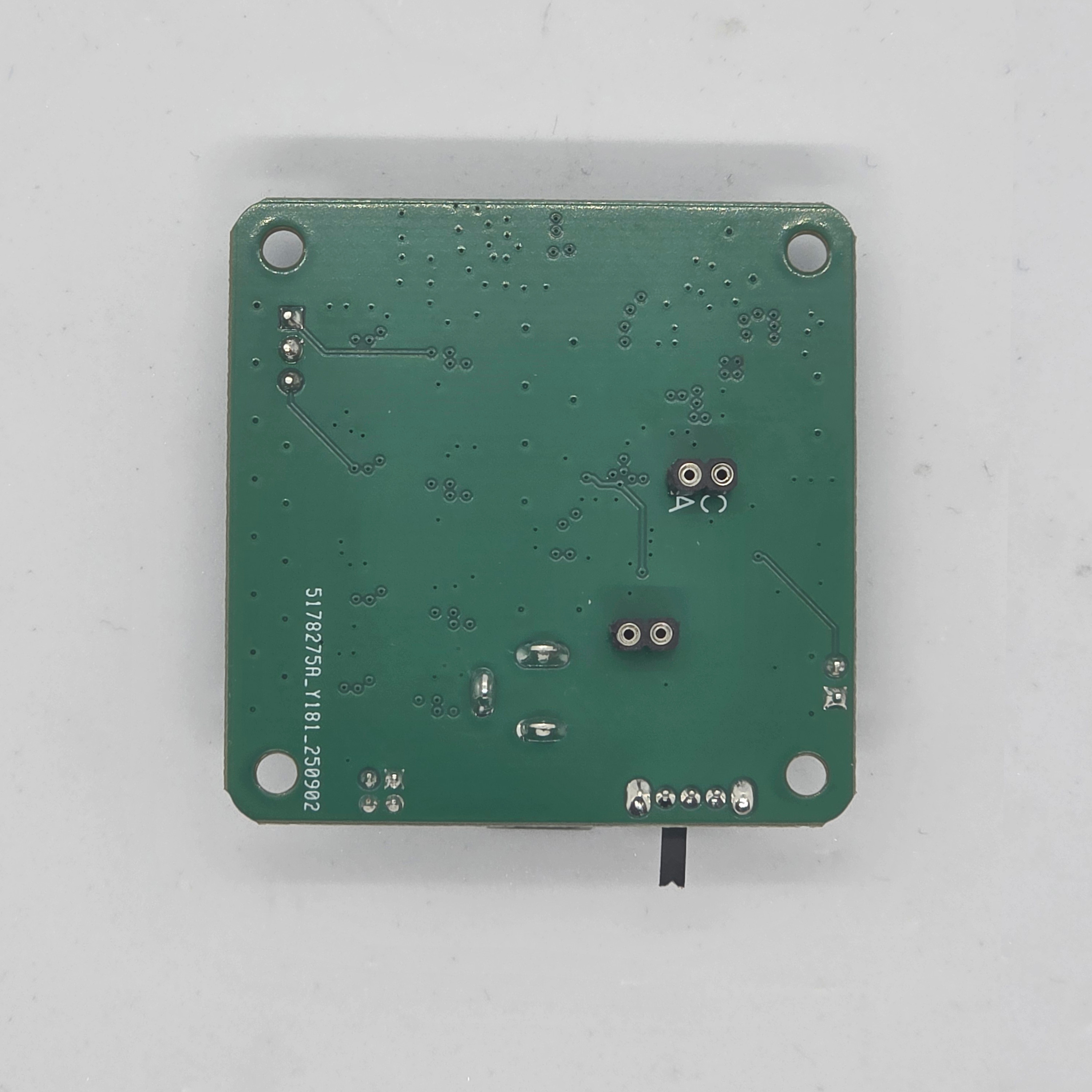

RadScope RS_PF001
SiPM preamp, filter & gain control board
A compact analog front-end for Broadcom AFBR-S4E001 SiPM modules, integrating amplification, filtering, and adjustable gain.
SiPM front-endAdjustable gain20 × 15 mm
₩800,000
Made-to-order · confirm lead time with ZEROM
Open original store ↗ Ask a questionPurchasing is handled by ZEROM’s original store. Confirm price, availability, and specifications before ordering.
Designed around the signal
Inside RadScope RS_PF001.
Condition the pulse
Low-noise amplification, a high-pass stage, dual Sallen-Key active filters, and adjustable gain prepare the analog signal for downstream processing.
Complete product description from ZEROM
Preamp + Filter + Gain Control Board for SiPM (S4E001 Base)
※ Key Features
Direct SiPM (S4E001) Connection
Fully compatible with Broadcom AFBR-S4E001
Provides stable power and precise bias-voltage supply
Integrated Analog Front-End Chain
• Low-Noise Pre-Amplifier
• High-Pass Filter (HPF)
• Dual Sallen-Key Active Filters (SK1, SK2)
• Adjustable Gain Control
Output Interface
Low-noise 50 Ω coaxial output via u.FL connector
Power Supply
Supports +5 V / –5 V ±15 V operation
Form Factor
20 mm × 15 mm (Mini Module)
※ Applications
SiPM signal conditioning for isotope spectroscopy
Real-time radiation detection and spectrum analysis modules
Educational and research instrumentation for signal amplification
※ Key Point
Through precise filtering and stable bias control,
RadScope RS-PF100 enhances signal-to-noise ratio and spectral resolution for accurate radiation analysis.
Technical specifications.
| Sensor compatibility | Broadcom AFBR-S4E001 SiPM |
|---|---|
| Analog chain | Low-noise pre-amplifier; high-pass filter; dual Sallen-Key active filters; adjustable gain |
| Output | 50 Ω coaxial output through u.FL connector |
| Power supply | Source listing: +5 V / −5 V ±15 V operation; confirm the exact rail configuration before integration |
| Form factor | 20 mm × 15 mm mini module |
The original source uses both RS_PF001 and RS-PF100 identifiers. Confirm the matching front-end and supply configuration with ZEROM.
Ordering & ownership
Production, delivery, and care.
Made-to-order production & shipping
Products are made to order. Contact ZEROM for production timing, which varies by order volume and specification. After production and inspection, the original store states dispatch within 1–2 business days via Hanjin, with typical delivery in 2–3 business days after dispatch.
Weekend and holiday orders are processed from the next business day. Jeju and remote areas may incur additional shipping fees. Tracking information is sent by text or email. Contact customer service for transit damage or loss. Confirm international shipping directly with ZEROM.
The original store states that change-of-mind cancellation or refund is unavailable after made-to-order production starts.
Returns & exchanges
- Unused products may be returned or exchanged within 7 days of receipt.
- Initial defects are eligible for replacement within 7 days of receipt.
- Physical damage, soldering traces, or circuit modifications may make the product ineligible for refund.
- Return the original packaging and all supplied accessories.
- The store states refund processing within 5–7 business days after receipt of the returned product.
Contact ZEROM to confirm eligibility before returning a made-to-order product.
Handling & maintenance
- Use ESD protection, including a wrist strap or mat.
- Keep heatsinks unobstructed during operation.
- Store in a dry, ventilated environment, away from moisture and dust.
- Verify polarity and the product-specific supply requirements before connection.
- Use antistatic packaging for long-term storage.
- Use firmware and software supplied through official SDK channels.
- These are industrial and research products. Stop operation and disconnect power if abnormal heat or smoke occurs.
